70kg Battery Forward Plate Compactor

CPC-1135BH

70kgWeight

11kNImpact Force

530x350mmPlate Size

Integrated Vibrator Case and Plate
High Performance
Redesign Electronic Control Box
Honda eGX Motor

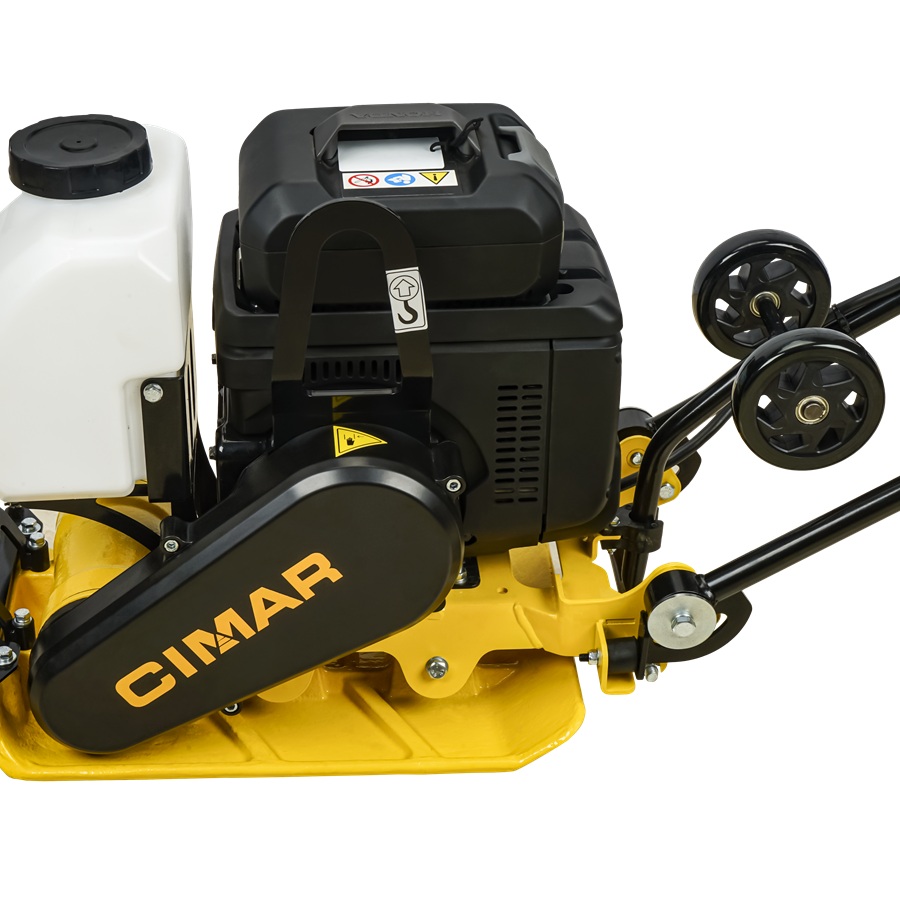

The CPC-1135BH is a second-generation battery forward plate compactor designed with compactness and ergonomics in mind. The integrated casting ductile iron bottom plate and vibrate case. It delivers the same level of performance and quality as CIMAR's classical products.

Send A Inquiry

Description

Casting ductile iron integrated base blate and vibrator case.
Its base plate is constructed from sturdy and durable ductile iron.
The inclusion of a spray system with a 9.4L water tank makes it ideal for use on asphalt and special worksites.
An integrated belt cover not only adds to its attractive appearance but also enhances durability.
Equipped with a shock absorber on the engine plate and a special anti-vibration design on the handle, operators experience enhanced comfort and improved control during work.
Customization is possible with optional models of throttle lever available for selection.
The integrated wheel system enables convenient short-distance transportation.
The CPC-1135BH is designed with a folded handle and wheel system, ensuring easy and hassle-free transportation.

Specifications

Engine Type		Honda eGX
Max. Power Ouput	kW(ps)	1.8(2.4)
Battery Capacity	Ah	10
Weight	Kg	70
Dimension	L (mm)	980
	W (mm)	350
	H (mm)	920
Plate Size	L (mm)	500
Plate Size	W (mm)	350
Vibration Frequency	Hz(vpm)	100(6000)
Centrifugal Force	kN(kgf)	11(1120)
Max.Traveling Speed	m/min	25
(Depending on materials)	m/min	25
Limited Gradient	%	35%
Runtime	min	37min
ChargingTime	min	90min
Cycles	time	500+
